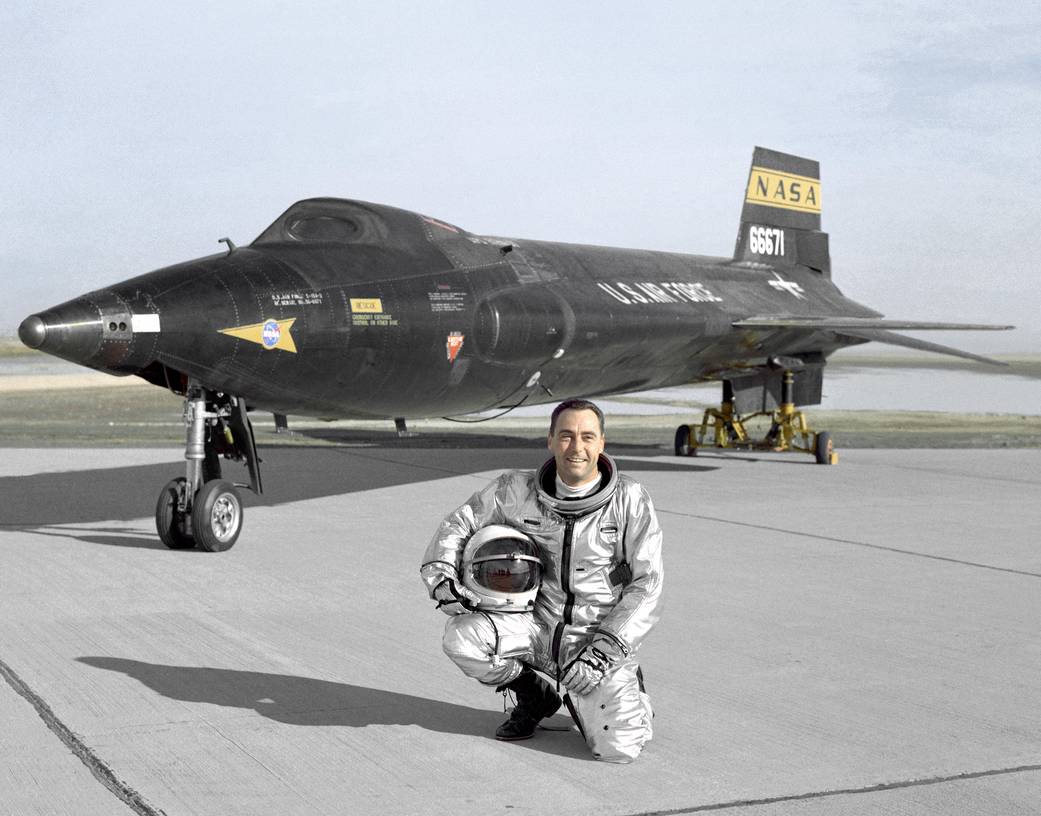

Is the X-15 really black?

The X-15 is often described as black, but in direct sunlight its surface is more accurately understood as an iridescent dark blue, or “gunmetal blue.” This color comes from the way iron and iron alloys change when they are repeatedly heated to high temperatures and then quenched. During that process, a thin layer of magnetite nanocrystals forms on the metal surface, creating the distinctive blue-black appearance.

Magnetite, FeOFe2O3, is commonly known as black iron oxide and is familiar as the “black sand” that can be picked up with magnets from playground sandboxes. It forms when iron oxidizes in water, unlike red iron oxide, Fe2O3, which is the common rust produced when iron oxidizes in air. The dark appearance of magnetite on iron is also the origin of the “black” in blacksmith.

The surface color is not a conventional pigment. The magnetite nanocrystals are extremely small, with a width only about 3% of the shortest wavelength of visible light. As the crystals become closely spaced across the surface, they absorb most colors of light while producing a metallic blue iridescence. This effect is caused by structural interference with short wavelengths of light, which favors the reflection of blue, much like the diffraction-grating effect that produces rainbow colors from the fine lines of a video disk.

Beyond color, the magnetite layer also improves performance. Because magnetite is much harder than the base metal, the crystals increase corrosion and scratch resistance while giving the surface very high thermal emissivity (0.925 at 2000°F). That high thermal emissivity allows efficient heat rejection and is a crucial reason the X-15 could survive the high temperatures of re-entry without relying on ablative or ceramic coatings.
